NO NUT QUICK RELEASE
FITTING SYSTEM.
PRO/SPEC
U.S. & INTERNATIONAL PATENTS PENDING
TESTING
SIZE (AN EQUIVALENT) | Crimped Superleggera (Aramid PTFE) Max. | Crimped Superstrasse (Nylon CPE) Max. Wo | PRO/SPEC Fitting Burst Pressure (PSI) | Superleggera (Aramid PTFE) Burst Pressur | Superstrasse (Nylon CPE) Burst Pressure | Max. Temperature (C/F) | Min. Temperature (C/F) |
|---|---|---|---|---|---|---|---|
AN4-1/4" | 2158 | 525 | 10000 | 9442 | 2100 | -70 C / -94 F | 150 C / 302 F |
AN6-3/8" | 1949 | 500 | 10000 | 9534 | 2000 | -70 C / -94 F | 150 C / 302 F |
AN8-1/2" | 1461 | 500 | 10000 | 6219 | 2000 | -70 C / -94 F | 150 C / 302 F |
AN10-5/8" | 1219 | 350 | 7500 | 6050 | 1400 | -70 C / -94 F | 150 C / 302 F |
AN12-3/4" | 1008 | 350 | 5000 | 5868 | 1400 | -70 C / -94 F | 150 C / 302 F |
AN16-1" | 974 | 300 | 4500 | 3083 | 1200 | -70 C / -94 F | 150 C / 302 F |
AN20-1-1/4" | 900 | 250 | 4500 | 2500 | 1000 | -70 C / -94 F | 150 C / 302 F |
**Working Pressure based on a 4x safety factor, testing at ambient temperature using water as a fluid medium, for temperatures over 100 degrees Celsius, reduce maximum operating pressure by 1% for every 1 degree Celsius increase.
COMPREHENSIVE RANGE

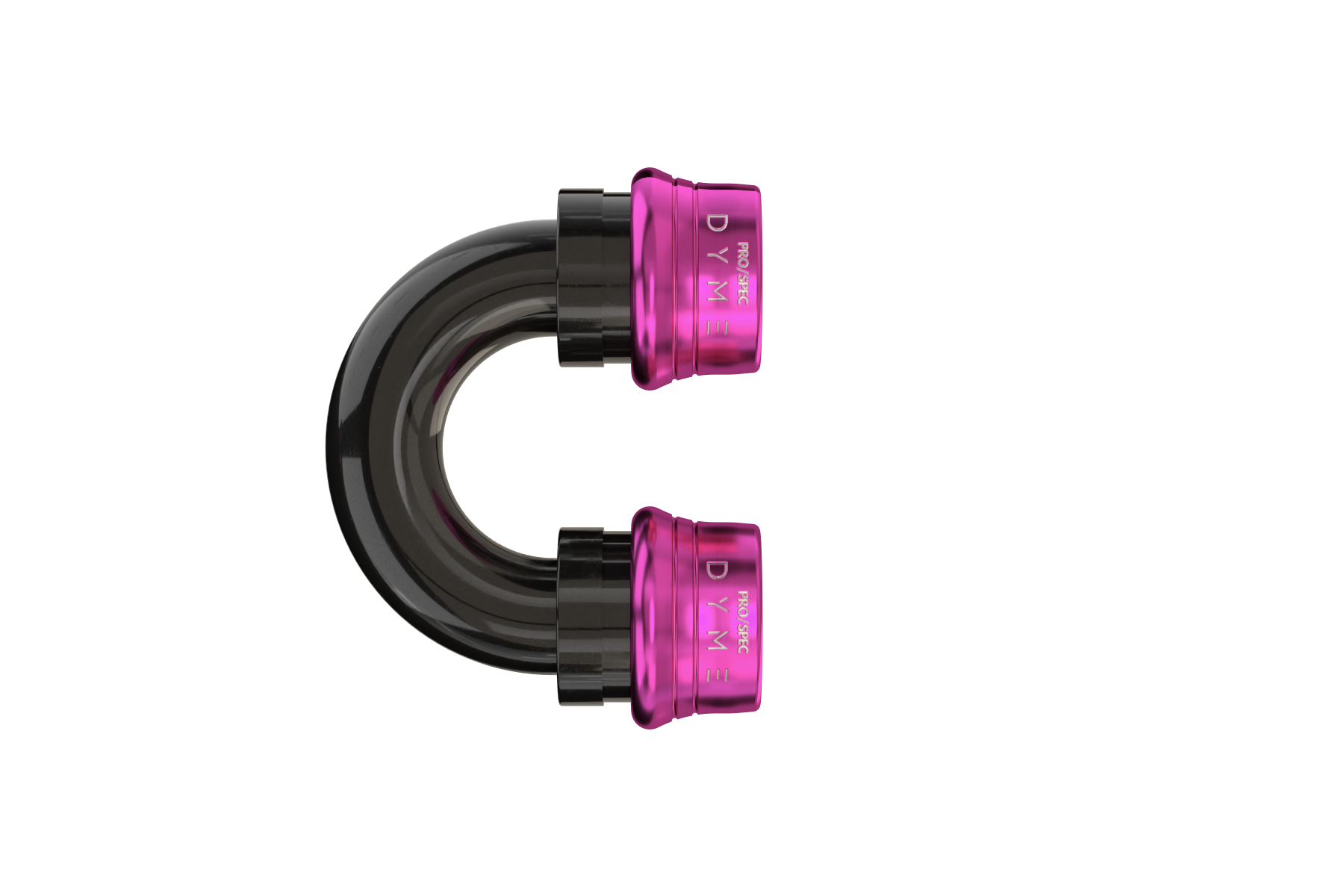

CRIMP-ON, COMPRESSION STYLE, O-RING BOSS (ORB), DOUBLE ENDED FITTINGS ARE ALL AVAILABLE, WITH MORE STYLES TO COME. EACH IS AVAILABLE IN SIZES EQUIVALENT TO -4 THROUGH -20 IN ANGLES FROM STRAIGHT THROUGH 180 DEGREES.
PRO/SPEC ARE THE SAFEST HIGH-FLOW FITTINGS IN MOTORSPORT, ALL FITTINGS HAVE A REDUNDANT LOCKING FEATURE THAT ALLOWS OVERLOCKING WITH A SPECIALLY DESIGNED CLIP, A PLASTIC RATCHET OR EVEN JUST A ZIP-TIE, MAKING SURE THERE’S NO MID RACE SURPRISES.
LOCK AND LOAD
SEEING IS BELIEVING
NEVER WONDER IF ALL THE DOZENS OF CONNECTIONS ON YOUR VEHICLE ARE SECURE, AT A GLANCE, YOU CAN KNOW FOR SURE. WITH NORMAL AN FITTINGS, UNLESS YOU CAN PUT A WRENCH ON IT, DO YOU KNOW IT IS TIGHT? PRO/SPEC FITTINGS INCLUDE A HI-VIZ BAND THAT WILL CLEARLY SHOW IT IS LOCKED AND LOADED.

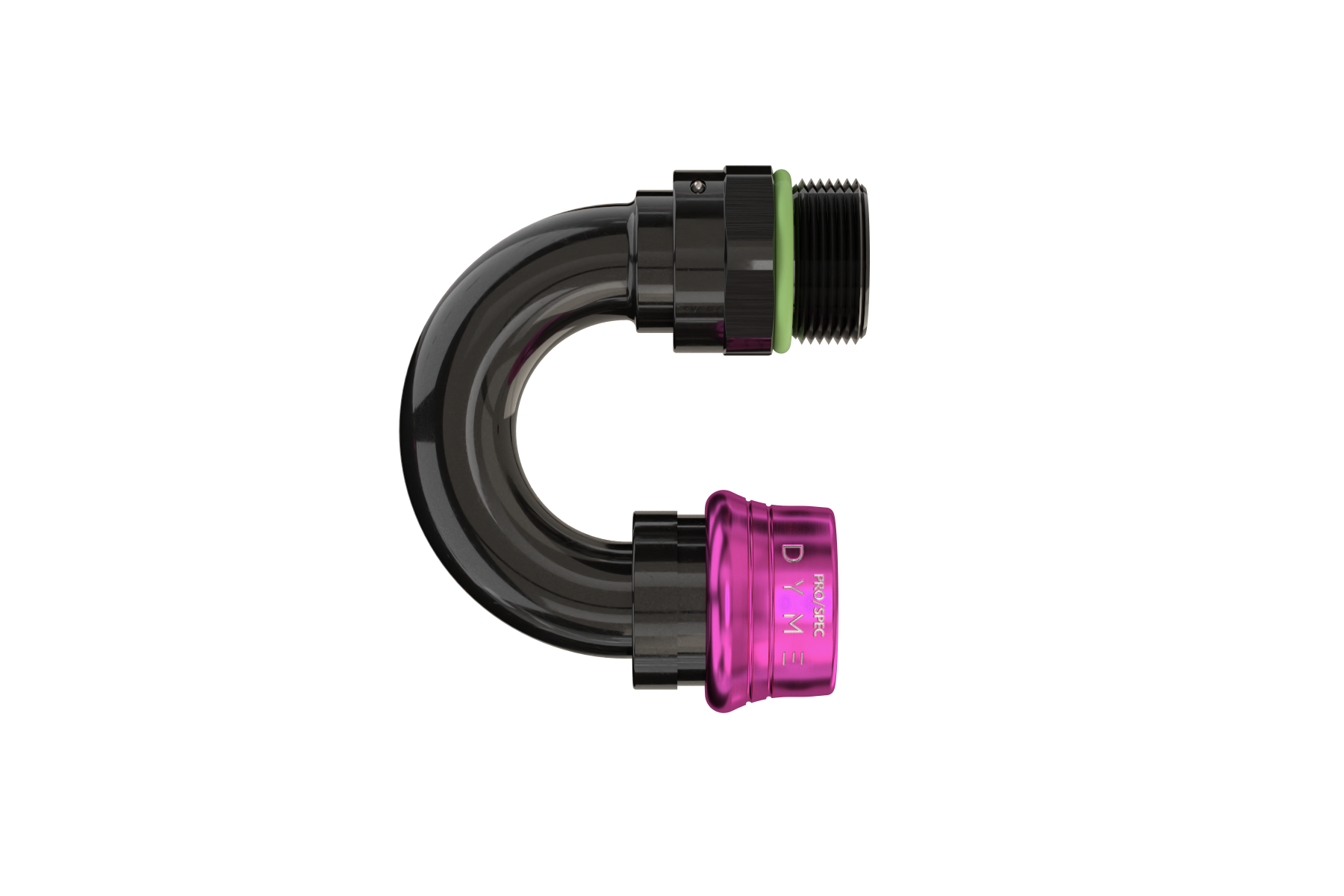

PRO/SPEC ADAPTERS
FINALLY A BETTER FITTING.
DYME PRO/SPEC QUICK RELEASE FITTINGS GIVE RACE PROVEN RELIABILITY WITH PTFE AND CPE RUBBER HOSES, WITH ALL THE CONVIENIENCE AND SPEEDY REMOVAL OF A CLAMSHELL, HOLDING UP TO 10,000PSI**.
SPEED MEETS RELIABILITY
ALL STANDARD PRO/SPEC FITTINGS ARE EQUIPPED WITH DUAL, SERVICABLE, FKM O-RINGS, RESISTANT TO A HUGE RANGE OF COMMON AUTOMOTIVE FLUIDS, AND ACHIEVING A BURST RESISTANCE OF UP TO 10,000 PSI, BUT CAN BE INSTALLED SECURELY AND SEALED IN SECONDS AND READY TO RACE.
PRO/SPEC FITTINGS USE THE HIGHEST QUALITY COMPATIBLE HOSE MATERIALS.
SUPERLEGGERA ARAMID BRAIDED, CARBON IMPREGNATED SMOOTHBORE PTFE, CORE, WITH HELICAL EXTERNAL COMVOLUTION TO PROVIDE GREAT FLEXIBILITY AND FLOW, PERFECT FOR HIGH PERFORMANCE RACING APPLICATIONS WITH SUPERIOR CHEMICAL RESISTANCE.
SUPERSTRASSE CPE LINED, NYLON AND STAINLESS STEEL BRAIDED RUBBER HOSE, A GREAT PERFORMANCE STREET CAR ALTERRNATIVE THAT IS E85 COMPATIBLE WITH GOOD LONGEVITY FOR A HOST OF APPLICATIONS.
HIGH PERFORMANCE HOSE
DYME MANUFACTURES A COMPREHENSIVE RANGE OF ADAPTERS AND ACCESSORIES TO MAKE PRO/SPEC COMPATIBLE WITH YOUR SYSTEMS AND FOR FABRICATION.
AN
ORB
NPT
PRO/SPEC
BULKHEADS
PLUGS & CAPS
WELD-ON ACCESSORIES.
BILLET ADAPTERS
